MOUNTAINEER DRAWINGS

MOUNTAINEER DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6Sheet number: Sheet 7
Sheet number: Sheet 8Sheet number: Sheet 9Sheet number: Sheet 10Sheet number: Sheet 11
Sheet number: Sheet 12

Image for display purposes only. Actual item may vary
Our Price:  £68.99(£57.49 Exc. VAT)Earn 68 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
–+


Part Number:  12/121
Brand:  Don Young

Share

Don young designed locomotives

  • Complete set of drawings
  • 12 sheets

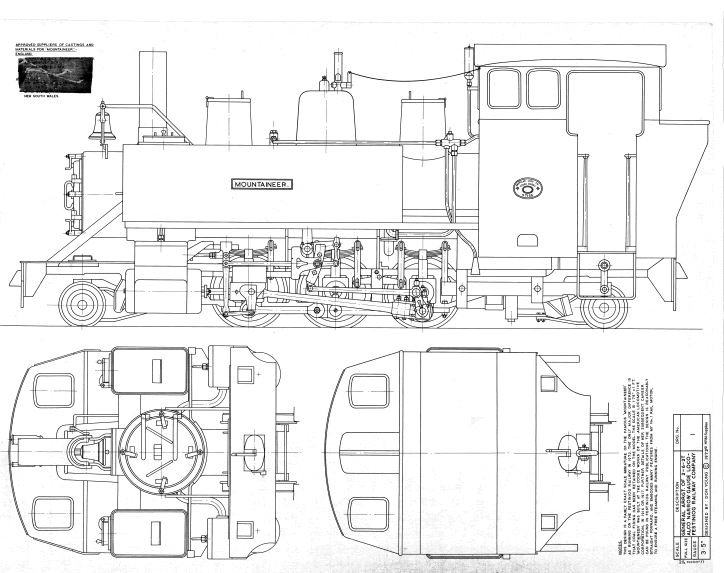

  • Sheet 1 - GA of locomotive circa 1972
  • Sheet 2 - Boiler, superheater & regulator
  • Sheet 3 - Cylinders, bar frames, axleboxes & coupled wheels
  • Sheet 4 - Smokebox saddle, gussets & stays, beams & centre coupler
  • Sheet 5 - Pony trucks & equalised springing
  • Sheet 6 - Rods, crossheads, slide bars, motion plate & valve gear arrangement
  • Sheet 7 - Motion details, lubricators & drain valves
  • Sheet 8 - Lubricator details, smokebox & main tank stays
  • Sheet 9 - Smokebox stays, side tanks, handpump, sandboxes & cab arrangement
  • Sheet 10 - Cab platework, bunker & grate
  • Sheet 11 - Running boards, ashpan, cab & boiler mountings, all details to complete
  • Sheet 12 - GA of locomotive as built in 1917
