JACK DRAWINGS

JACK DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £33.67(£28.06 Exc. VAT)Earn 33 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  22/701
Brand:  Don Young

Don young designed locomotives


  • 5 sheets
  • Complete set of drawings
  • Individual sheets also available

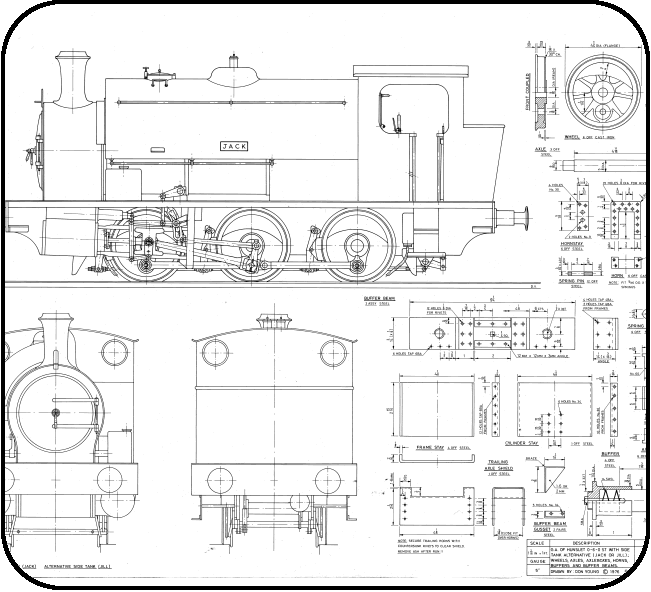

  • Sheet 1 - GA of engine, wheels, axles, axleboxes, horns, buffers & buffer beams
  • Sheet 2 - Boiler, frames, feed pump, cylinder arrangement & part details
  • Sheet 3 - Remaining cylinder details, rods, motion, reverser & lubricator
  • Sheet 4 - Brake gear, guard iron, coupler, sandbox, steam circuit, smokbox & regulator
  • Sheet 5 - Firehole door, manifold, steps, grate & ashpan, running boards, tanks, cab & bunker
Jack 0-6-0 tank locomotive in 5" gauge. A straightforward design from Don Young except for the saddle tank and complimented by Jill

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
