Part Number:  4/101
Brand:  Martin Evans

Martin Evans designed locomotives




  • Complete set
  • Individual drawings available

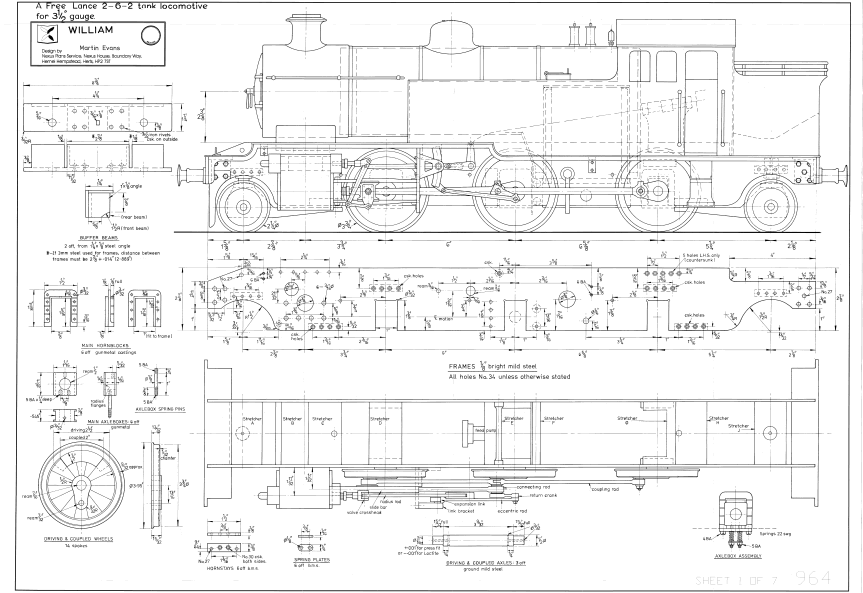

  • Sheet 1 - GA, main frames, buffer beams, D&C wheels, driving axle, horns and axleboxes
  • Sheet 2 - Pony truck, wheels & axle, stretchers, feedpump, crankpins
  • Sheet 2a - Cylinder assembly
  • Sheet 3 - Boiler details
  • Sheet 4 - Connecting & coupling rods, Motion plate, crosshead, valve gear details
  • Sheet 5 - Reversing gear, smokebox, regulator, grate
  • Sheet 6 - Cab fittings, ashpan, running boards, side-tank-cab side - bunker side (LH only)
  • Sheet 7 - RH tank cab side & bunker side, firedoor, chimney, dome, buffers
  • Sheet 7a - Whistle, turret & whistle valve, check valve, blowdown valve, bypass valve, water gauge, snifting valve, oil check valve, safety valve, blower valve, mechanical lubricator
William 2-6-2 freelance tank locomotive in 3 1/2" gauge. Another fine design by Martin Evans also suitable for the beginner. Described in ME Vols. 149-152

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
