DORIS CROSSHEADS

• 1 off crosshead casting
• Sufficient material for 2 crossheads
• Gunmetal

4-6-0 Tender Loco. The well known LMS Class 5 a proven performer both in full size and model form. Designed by LBSC. Described in Model Engineer Vol. 98-101. Length (loco & tender): 48.25". Boiler Dia: Taper. Cylinder Bore: 1.156". Driving Wheel dia: 4.5"

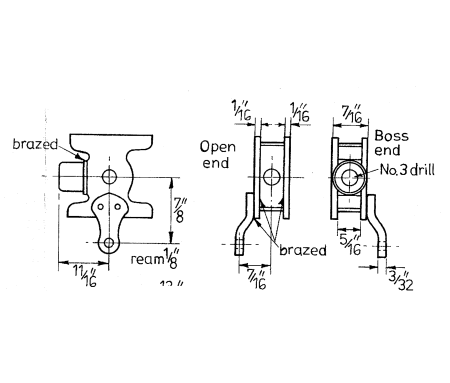

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
