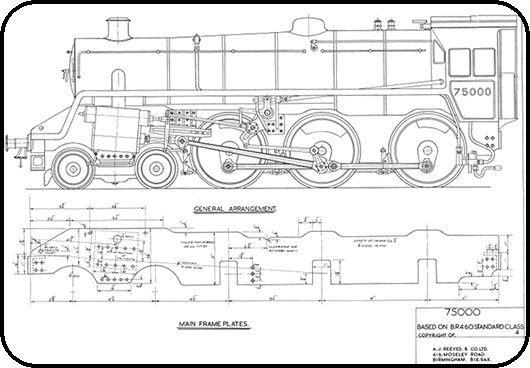

Image for display purposes only. Actual item may vary
Our Price:  £9.90(£8.25 Exc. VAT)Earn 9 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders

Part Number:  6/079
Brand:  LBSC

LBSC designed locomotives

  • Complete set of drawings
  • 13 sheets
  • Individual sheets available
  • Sheet 1 - General arrangement and frames
  • Sheet 2 - Frame erection, buffer beams, coupled wheels, horns, axleboxes, bogie wheels, coupling rods, bogie bolster, pump and stay assy.
  • Sheet 3 - Eccentrics, bogie arrangement and details, connecting rods, crossheads, cylinder details
  • Sheet 4 - Guide bars and brackets, motion brackets, valve gear and details
  • Sheet 5 - Further valve gear details, lubricator, steam brake, firebox door plate, hollow stay
  • Sheet 6 - Boiler, smokebox, chimney, smokebox saddle, regulator dome, smokebox door details
  • Sheet 7 - Crossbar, dart & details, regulator, superheater, safety valve, turret and whistle valves, misc valves, cab layout
  • Sheet 8 - Misc valves, ashpan, grate, combined blast and blower noxxle, injector, expansion brackets
  • Sheet 9 - Coner reamers, clack erection, cab front and sides, footplating, front steps, whistle, buffers and couplings front footplate
  • Sheet 10 - Footplating, reversing gear, engine-tender coupling, brake valve, tender frame erection, tender horns, stays, axleboxes, axles, wheels, tender pump
  • Sheet 11 - Tender body and erection, steps, injector water valve, buffers, dummy vacuum brake pipe
  • Sheet 12 - Tender general arrangement, frames and beams
  • Sheet 13 - Tender brakes, details and erection

British Railways Standard 75000 4-6-0 tender locomotive in 3 1/2" gauge. By LBSC and originally described in Mechanics from 1952 - 1956

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
