LIFFORD HALL DRAWINGS

LIFFORD HALL DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: SHEET 1Sheet number: SHEET 2Sheet number: SHEET 3
Sheet number: SHEET 4Sheet number: SHEET 5Sheet number: SHEET 6Sheet number: SHEET 7
Sheet number: SHEET 8Sheet number: SHEET 9Sheet number: SHEET 10Sheet number: SHEET 11
Sheet number: SHEET 12Sheet number: SHEET 13

Image for display purposes only. Actual item may vary
Our Price:  £52.82(£44.02 Exc. VAT)Earn 52 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  8/002
Brand:  LBSC

LBSC designed locomotives


  • Complete set of drawings
  • 13 sheets
  • Individual sheets available

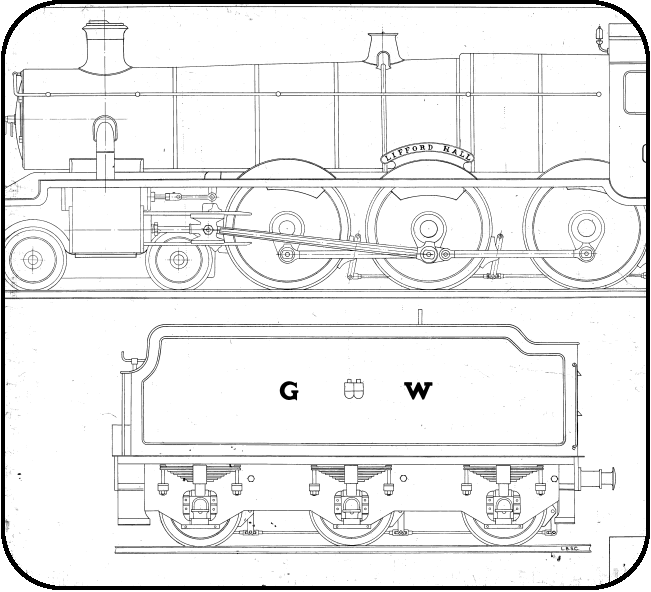

  • Sheet 1 - General arrangement loco and tender
  • Sheet 2 - Frames and frame erection, beams, horns, wheels, axles, buffers, connecting and coupling rods
  • Sheet 3 - Cylinders, pistons, valves, crossheads, guide bar brackets, bogie frames, wheels and axles
  • Sheet 4 - Valve gear
  • Sheet 5 - Reversing gear, exhaust pipes, mechanical lubricator, drain cocks
  • Sheet 6 - Boiler, smokebox, chimney
  • Sheet 7 - Smokebox details, safety valve, regulator, boiler section
  • Sheet 8 - Can fittings
  • Sheet 9 - Grate, ashpan, injector, steampipes, whistle, crosshead pump
  • Sheet 10 - Top feed pump, injector connections, running boards, splashers, tender frames
  • Sheet 11 - Cab, tender erection, tender beams and couplings, tender wheels, axles, axleboxes, steps
  • Sheet 12 - Tender tank and brake gear
  • Sheet 13 - Alternative slide valve cylinders, driving wheels

4-6-0 GWR Hall Class Loco. One of Reeves exclusive LBSC designs which has proved constantly popular over the years. Formerly called Lickham Hall. Available with Piston or Slide Valve Cylinders.

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
