1000 CLASS DRAWINGS RV2

1000 CLASS DRAWINGS RV2
  Zoom
Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6Sheet number: Sheet 7
Sheet number: Sheet 8Sheet number: Sheet 9Sheet number: Sheet 10Sheet number: Sheet 11
Sheet number: Sheet 12

Image for display purposes only. Actual item may vary
Our Price:  £72.32(£60.27 Exc. VAT)Earn 72 Loyalty Points
+
Sheet number:
Rolled:

Part Number:  8/044


  • Complete set of drawings, 12 sheets

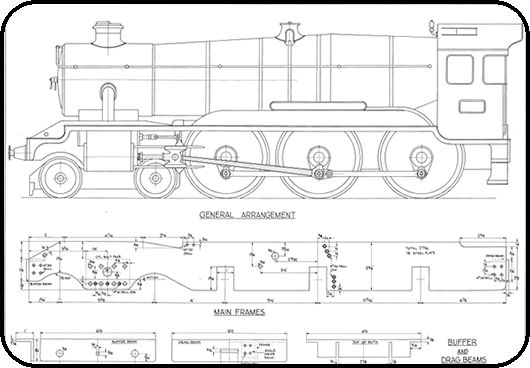

  • Sheet 1 - Loco general arrangement, frames, buffer & drag beams
  • Sheet 2 - Frame assembly, wheels, axles, axleboxes, bogie frames
  • Sheet 3 - Coupling rods, buffers, cylinders & piston valves, connecting rods, eccentric straps, and rods, guide bars, expansion links
  • Sheet 4 - Valve gear & links, reversing gear, exhaust pipe assy, drain cocks, mechanical lubricator
  • Sheet 5 - Boiler
  • Sheet 6 - Boiler stays, tender pump, smokebox & pipe connections, regulator, chimney
  • Sheet 7 - Boiler section, regulator, superheater, safety valve, cab fittings, injector, whistle
  • Sheet 8 - Grate, ashpan, pump & fittings
  • Sheet 9 - Running board & splashers, cab, tender frames & beams, bypass valve
  • Sheet 10 - Tender GA, tender section, wheels, axles & axleboxes
  • Sheet 11 - Tender brake gear & couplings
  • Sheet 12 - Alternative slide valve cylinders




Image for display purposes only. Actual item may vary from image displayed
