Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6Sheet number: Sheet 7
Sheet number: Sheet 8Sheet number: Sheet 9

Image for display purposes only. Actual item may vary
Our Price:  £61.73(£51.44 Exc. VAT)Earn 61 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders

Part Number:  8/083
Brand:  Don Young

Don young designed locomotives

  • Complete set of drawings
  • 9 sheets
  • Supplied folded unless otherwise selected

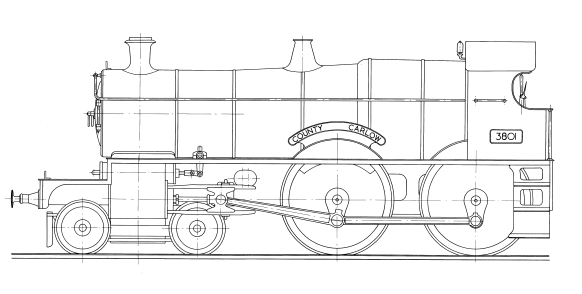

  • Sheet 1 - GA of engine & tender
  • Sheet 2 - Original boiler & mountaings, superheater
  • Sheet 3 - Piston valve cylinders, frame stays, beams, horns, axleboxes & coupled wheels
  • Sheet 4 - Bogie, rods, motion & lubricator drive arrangement
  • Sheet 5 - Motion details, lubricator, cocks & brake gear
  • Sheet 6 - Brake gear details, crosshead feed pump, cab layout, smokebox & original smokebox saddle
  • Sheet 7 - Superstructture, boiler mountings & vertical injector
  • Sheet 8 - GWR 3000 gallon tender details
  • Sheet 9 - Slide valve cylinders, alternative boiler, Ell draughting & simplified reverser pole

4-4-0 Tender Loco. An elegant model based on the original Great Western design. Drawings by Don Young. Described in ME Vol. 135-136

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
