Part Number:  10/084S01
Brand:  LBSC

LBSC designed locomotives

  • Complete set of drawings
  • 8 sheets
  • Individual sheets available

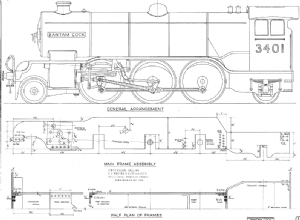

  • Sheet 1 - General arrangement, frames and frame erections
  • Sheet 2 - Buffer beams, wheels, axles, axleboxes, horns, boiler feedpump, coupling rods
  • Sheet 3 - Pony truck, cylinders pistons, valve gear, guide bars, motion brackets
  • Sheet 4 - Reversing ear, inlet & exhaust pipes, mechanical lubricator, boiler sheet developments
  • Sheet 5 - Boiler, smokebox, saddle, handpump, superheater & connections
  • Sheet 6 - Regulator, cab fittings, safety valves, grate, ashpan
  • Sheet 7 - Running boards, valance, cab, injector, tender beams, & buffers, tender wheels, axles, axleboxes
  • Sheet 8 - Tender general arrangement, tender water fittings, couplings

Bantam Cock 2-6-2 LNER Class V4 tender locomotive in 3 1/2" gauge. Designed by LBSC and described in Mechanics 1945-6. One of Gresley's two prototype Class V4 of the LNER for light branch duties.
