GEORGE DRAWINGS



• 4 sheets
• Single sheet also available
• Supplied folded unless otherwise selected

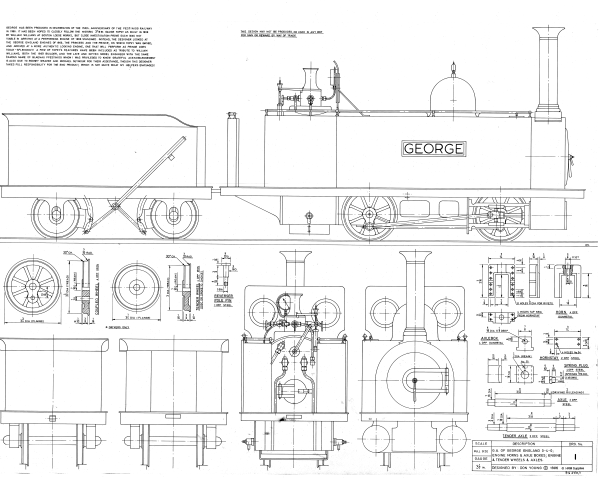

• Sheet 1 - GA of engine & tender, engine horns & axleboxes, engine & tender wheels & axles
• Sheet 2 - Chassis arrangement, frames, stays, cylinders, rods & motion
• Sheet 3 - Boiler, smokbox, backhead fittings, lubricator & reverser
• Sheet 4 - Running boards, side tanks & concluding engine details, tender details

George 0-4-0 tank locomotive in 3 1/2". Designed by Don Young in celebration of the Festiniog Railway's 150th anniversary

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
