PRINCESS MARINA DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: SHEET 1Sheet number: SHEET 2Sheet number: SHEET 3
Sheet number: SHEET 4Sheet number: SHEET 5Sheet number: SHEET 6

Image for display purposes only. Actual item may vary
Our Price:  £33.39
List Price:  £37.10
Saving Of:  £3.71 (10%)
(£27.83 Exc. VAT)Earn 33 Loyalty Points
+
Sheet number:

Part Number:  6/042

10% off everything until Easter Monday. Offer ends 23:59 22/04/2019. Discount automatically applied. Online orders only


  • Complete set of drawings
  • 6 sheets
  • Individual sheets available

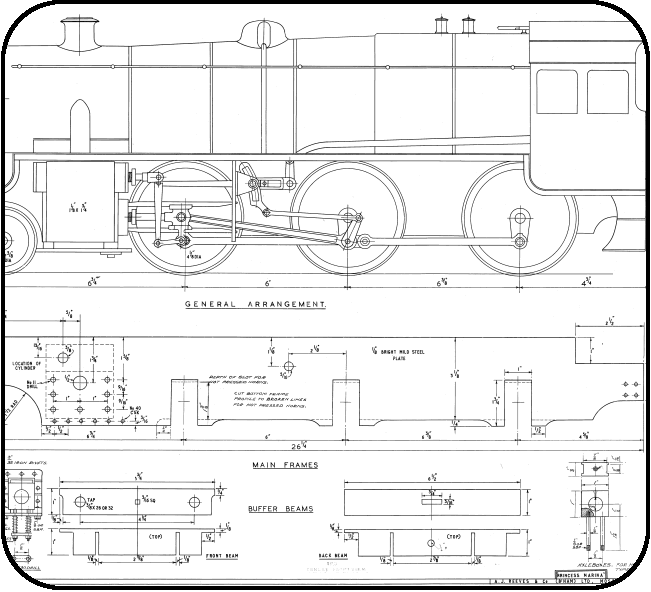

  • Sheet 1 - General arrangement, frames and buffer beams
  • Sheet 2 - Frame assembly, pony bolster, pony truck, wheels, horns, axleboxes, cylinders, guide bars, water pump and eccentrics
  • Sheet 3 - Connecting and coupling rods, motion brackets, piston rods, valve rods, crossheads, reversing lever, valve gear
  • Sheet 4 - Steam exhaust pipes, mechanical lubricator, boiler, backhead fittings, safety & snifting valves, top feed clacks, grate, ashpan
  • Sheet 5 - Cab sides, & front, saddle, pipe connection diagram, injector, brake cylinder & valve, tender brake rigging
  • Sheet 6 - Tender general arrangement, frames, wheels, axleboxes, handpump

Ex LMS Stanier design by LBSC and described in Mechanics in 1935

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
