B R CLASS 2 DRAWINGS

B R CLASS 2 DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6Sheet number: Sheet 7

Image for display purposes only. Actual item may vary
Our Price:  £48.42(£40.35 Exc. VAT)Earn 48 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
–+


Part Number:  15/501
Brand:  Don Young

Share

Don young designed locomotives

  • 7 Sheets
  • Individual sheets also available

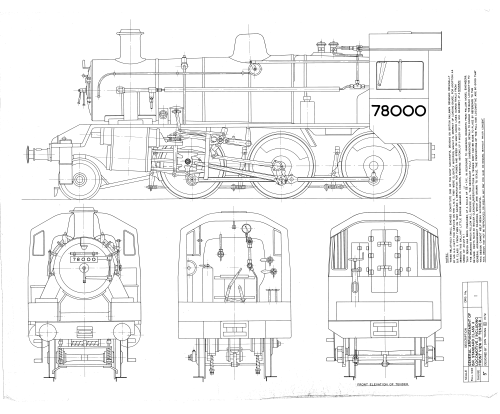

  • Sheet 1 - GA of engine, front view of tender
  • Sheet 2 - Tender side & rear views, frames, stretchers, beams, axles & wheels
  • Sheet 3 - Tender completion details, boiler & regulator
  • Sheet 4 - Cylinders, frames, beams, stays & horns
  • Sheet 5 - Pony truck, wheels, rods, slide bars & motion plate
  • Sheet 6 - Valve gear, reverser, part brake gear
  • Sheet 7 - Remaining brake gear details, smokebox, boiler fittings, grate, ashpan & details to complete
