JERSEY LILY DRAWINGS

JERSEY LILY DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £88.38(£73.65 Exc. VAT)Earn 88 Loyalty Points
+
Sheet number:
Rolled:

Part Number:  15/002


  • 14 sheets
  • Complete set
  • Supplied folded unless otherwise selected

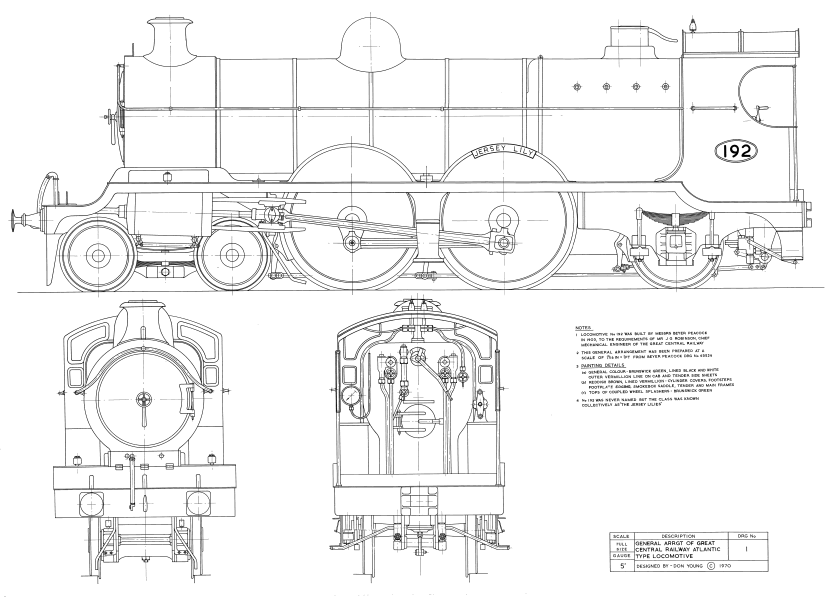

  • Sheet 1 - GA of engine
  • Sheet 2 - GA of tender, part details
  • Sheet 3 - Tender chassis details
  • Sheet 4 - Tender body & fittings
  • Sheet 5 - Boiler, inner dome & regulator
  • Sheet 6 - Frames, stays, motion plate & drag box
  • Sheet 7 - Cylinders, superheater, drain cocks, dome cover & safety valves
  • Sheet 8 - Bogie, main axleboxes & leaf spring details
  • Sheet 9 - Coupled & trailing wheels, outside motion plate, coupling & connecting rods
  • Sheet 10 - Buffer beams, buffers & couplings, crossheads, valve gear arrangement & part details
  • Sheet 11 - Remaining valve gear details, lubricator, brake gear arrangement & part details
  • Sheet 12 - Remaining brake gear details, sanding gear & smokebox
  • Sheet 13 - Cab fittings, hand pump & boiler erection details
  • Sheet 14 - Superstructure & all details to complete
Jersey Lily 4-4-2 Great Central Atalantic in 5" gauge. The first of a range of Great Central designs by the late Don Young. Arguable one of the most beautiful locomotives ever built and serialised in Model Engineer Vol 137-9

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
