ASPINALL DRAWINGS

ASPINALL DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £82.16(£68.47 Exc. VAT)Earn 82 Loyalty Points
+
Sheet number:

Part Number:  15/451


  • 12 sheets
  • Complete set
  • Supplied folded unless otherwise selected

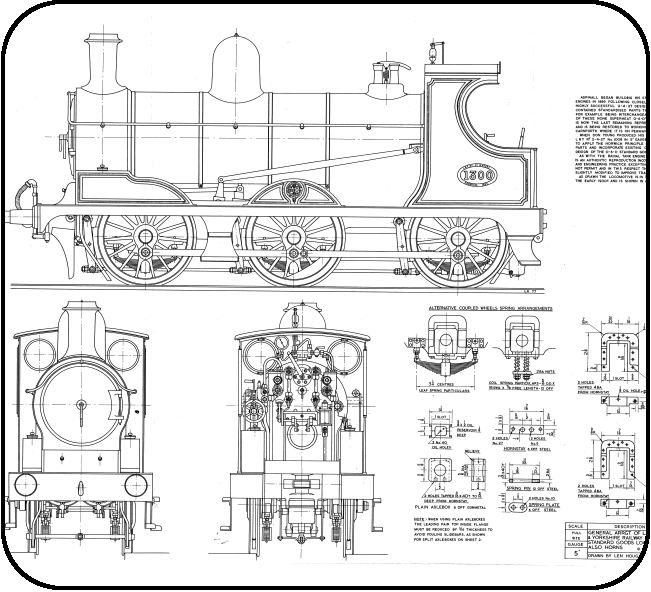

  • Sheet 1 - GA of engine, horns & plain axleboxes
  • Sheet 2 - Split axleboxes, drag box, frame plan, gusset, beams, stay & motion plate
  • Sheet 3 - Leaf springs, wheels, axles, coupling rods & cylinders
  • Sheet 4 - Connecting rods, valve gear & reverser arm
  • Sheet 5 - Brake gear, draincocks, reverser & buffers
  • Sheet 6 - Boiler, internal fittings, superheater & regulator
  • Sheet 7 - Smokebox, part hydrostatic lubricator, couplings & jack
  • Sheet 8 - Front & rear sanding, splashers, running boards & valances
  • Sheet 9 - Boiler erection. ashpan, damper gear, grate, cab layout & part fittings
  • Sheet 10 - Remaining cab fittings, cab structure, safety valves, blowdown valve, firehole door & cab windows
  • Sheet 11 - GA of tender, frames, wheels, buffer beam, axleboxes & spring arrangement
  • Sheet 12 - Tender frame plan, drag boxes & water tank
  • Sheet 13 - Tender brake gear, handpump, locker, guard irons & buffers

Aspinal 0-6-0 tender locomotive in 5" gauge. A fine example of the Lancashire & Yorkshire Locomotive many details taken from the now preserved 'A' classs No.1122

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
