MACAILIN MOR DRAWINGS 9 SHEETS

MACAILIN MOR DRAWINGS 9 SHEETS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £56.21(£46.84 Exc. VAT)Earn 56 Loyalty Points
+
Sheet number:
Rolled:

Part Number:  15/601


  • Supplied folded unless otherwise selected

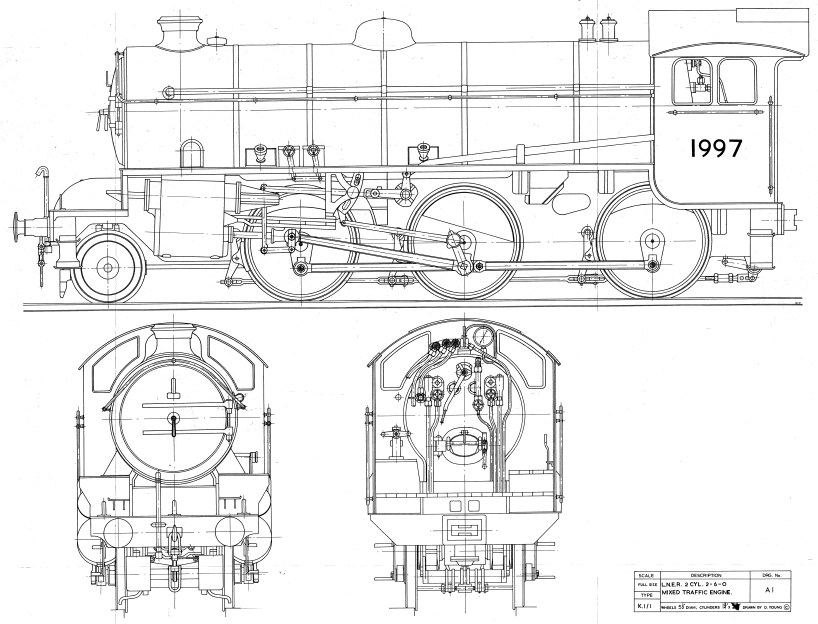

  • Sheet A1 - GA of engine
  • Sheet B1 - Boiler
  • Sheet E1 - Fabricated cylinders (20in bore x 26in stroke)
  • Sheet E2 - Arrangement of valve gear
  • Sheet E3 - Wheels, axles, rods & motion
  • Sheet E4 - Arrangement & details of frames, part pony truck
  • Sheet E5 - Brake gear, sandboxes, smokebox, grate, ashpan, boiler fittings & all details to complete engine
  • Sheet AT1 - GA of 4200 gallon tender
  • Sheet T1 - Tender chassis details
