BARNET DRAWINGS

25% off
BARNET DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £33.64
List Price:  £44.85
Saving Of:  £11.21 (25%)
(£28.03 Exc. VAT)Earn 33 Loyalty Points
+
Sheet number:

Part Number:  15/651

Thinking of your next project?
Save 25% off all drawings until the end of January


  • 7 sheets

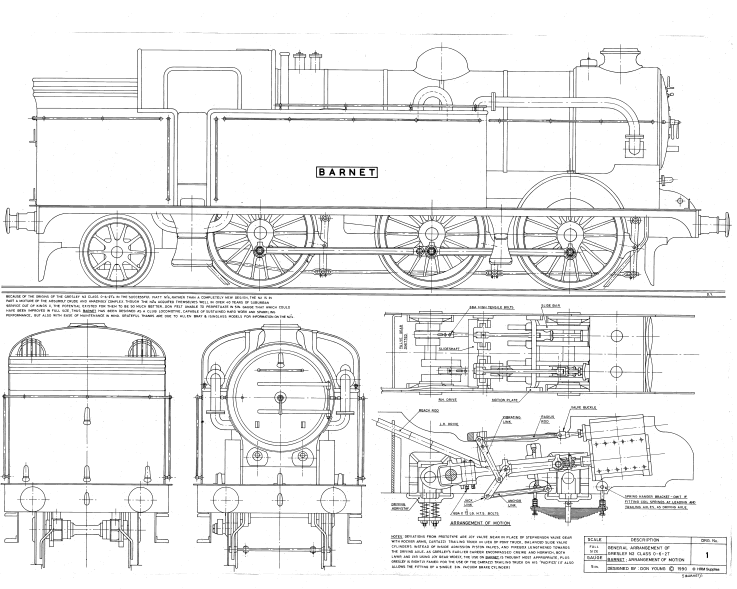

  • Sheet 1 - GA of engine, arrangement of motion (joy gear)
  • Sheet 2 - Boiler & dome, mainframes, trailing frames, beams, horns, motion plate & stays
  • Sheet 3 - Wheels, axles, axleboxes, keeps, springing, cylinders, slide bars, crossheads & part motion
  • Sheet 4 - Cab arrangements, valve gear details, reverser, draincocks, brake gear, cylinder lubrication, buffers & couplings, dummy condensing pipes
  • Sheet 5 - Smokebox, regulator, grate & ashpan, safety valves, fire door, manifold & steps
  • Sheet 6 - Bunker, side tanks, leading splasher, cab side/roof & cab back
  • Sheet 7 - Arrangement & details of authentic Stephenson link valve gear
Barnet 0-6-2 tank locomotive in 5" gauge. A version of Gresley N2 class locomotive. A powerful tank locomotive design by Don Young.

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
