DONCASTER DRAWING SET 17 SHEETS

DONCASTER DRAWING SET 17 SHEETS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £107.03(£89.19 Exc. VAT)Earn 107 Loyalty Points
+
Sheet number:

Part Number:  15/741


  • 17 sheets
  • Complete set
  • Single sheets also available

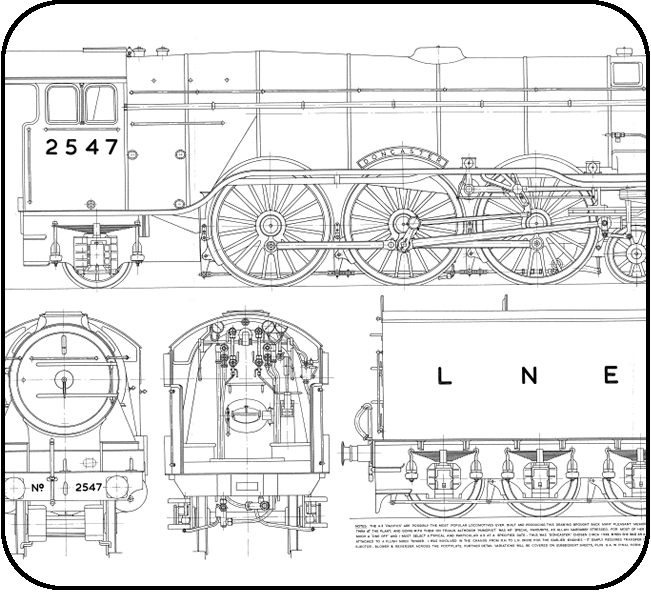

  • Sheet 1 - GA of engine circa 1933, side view of flush sided non-corridor tender
  • Sheet 2 - End views of tender, frames assembly & part details
  • Sheet 3 - Tender wheels, spring gear & part brake gear
  • Sheet 4 - Concluding tender details including vacuum brakes, engine coupled wheels, bogie wheels & axleboxes
  • Sheet 5 - Boiler, part steam circuit, blower, superheater, safety valves & regulator
  • Sheet 6 - Inside & outside cylinders, bogie arrangement & part details, smokebox saddle
  • Sheet 7 - Remaining bogie details, frame plan, mainframes, horns, axleboxes & springing
  • Sheet 8 - Beams, stays, stiffeners, motion plates, brackets, weighshaft, slide bars & trailing frames
  • Sheet 9 - Cartazzi truck, crossheads & side rods, bogie & expansion link variations
  • Sheet 10 - Valve gear
  • Sheet 11 - Reverser, brake gear, part sanding gear & lubricators
  • Sheet 12 - Gravity sanding, drain cocks, smokebox arrangement & details
  • Sheet 13 - Grate, ashpan, damper, valance, running boards & splasher
  • Sheet 14 - Cab platework & fittings
  • Sheet 15 - Name & works plates, dummy whistle, later A3 variants & GN style tender body
  • Sheet 16 - GA of engine circa 1963, side view of GN tender
  • Sheet 17 - GA of Mallard circa 1938, side view of non-corridor streamlined tender
Doncaster 4-6-2 tender locomotive in 5" gauge. Based around the Gresley A1/3s with three cylinders and designed by Don Young. Certain details also provided for A4 builders

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
