Sheet number: Complete SetSheet number: Sheet 1Sheet number: Sheet 2Sheet number: Sheet 3
Sheet number: Sheet 4Sheet number: Sheet 5Sheet number: Sheet 6Sheet number: Sheet 7
Sheet number: Sheet 8Sheet number: Sheet 9Sheet number: Sheet 10Sheet number: Sheet 11
Sheet number: Sheet 12Sheet number: Sheet 13Sheet number: Sheet 14Sheet number: Sheet 15

Image for display purposes only. Actual item may vary
Our Price:  £98.28(£81.90 Exc. VAT)Earn 98 Loyalty Points
Loyalty points can be used for credit against future orders. Loyalty points are valid for 24 months from date of purchase. Points can only be collected and used with online orders
+


Part Number:  16/101
Brand:  Les Saxby


  • 15 sheets
  • Complete set

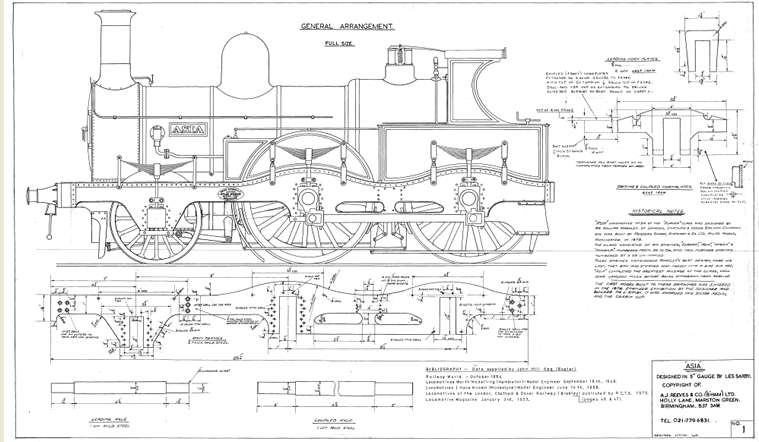

  • Sheet 1 - Loco general arrangement, frames and horns
  • Sheet 2 - con rods, motion brackets, axleboxes, buffer beams & front beams
  • Sheet 3 - Cylinders and wheels
  • Sheet 4 - Valve gear assembly & components
  • Sheet 5 - Reversing gear, crosshead pump
  • Sheet 6 - Lubricator, brake components
  • Sheet 7 - Further brake details, valances, guard irons
  • Sheet 8 - Boiler, smokebox and chimney
  • Sheet 9 - Superheater, safety valve, regulator, dome
  • Sheet 10 - Backhead fittings, whistle, pipe diagram
  • Sheet 11 - Grate, ashpan, dummy airpump, nameplates, misc. fittings
  • Sheet 12 - Lagging, cab details, livery, buffers, injectors
  • Sheet 13 - Tender general arrangement, frames, wheels, axles and axleboxes, horns and beams
  • Sheet 14 - Tender fittings, brakes, water valves etc
  • Sheet 15 - Tender tank details
Asia 2-4-0 LCDR Europa" clas locomotive in 5" gauge. A fine model designed by Les Saxonby based on the Class No 54 by William Martley. Other locos in this class were named "Africa" and "America"

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
