MARIE E DRAWINGS

MARIE E DRAWINGS
  Zoom

Image for display purposes only. Actual item may vary
Our Price:  £26.20(£21.83 Exc. VAT)Earn 26 Loyalty Points
+
Sheet number:
Rolled:

Part Number:  22/551


  • 4 sheets
  • Single sheets also available
  • Supplied folded unless otherwise selected

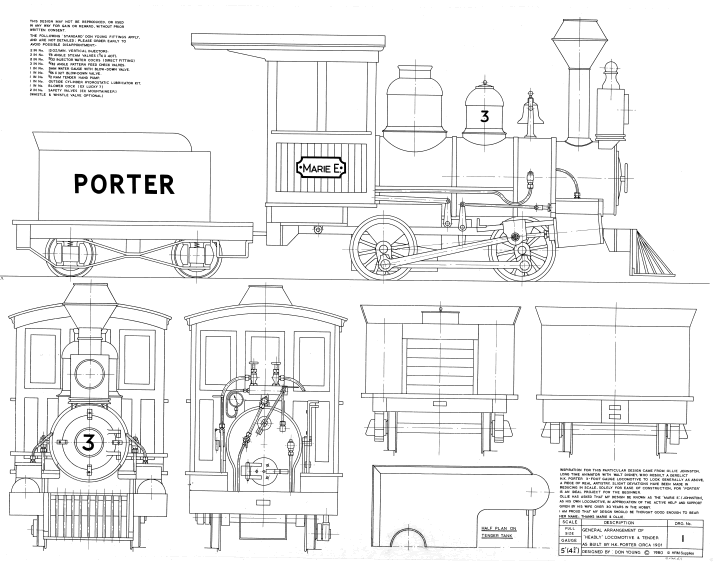

  • Sheet 1 - GA of engine & tender
  • Sheet 2 - Chassis arrangement & details
  • Sheet 3 - Remaining chassis details, boiler, smokebox, sandbox, bell & regulator
  • Sheet 4 - Grate, ashpan, running boards, cab & tender to complete
Marie E 0-4-0 tender locomotive in 5" gauge. Don Young produced drawings for this design from the original sketches of Ollie Johnston a retired disney animator.

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
