JENNY LIND DRAWINGS

10% off Until 22/4
JENNY LIND DRAWINGS
  Zoom
Sheet number: Complete SetSheet number: SHEET 1Sheet number: SHEET 2Sheet number: SHEET 3
Sheet number: SHEET 4Sheet number: SHEET 5Sheet number: SHEET 6

Image for display purposes only. Actual item may vary
Our Price:  £33.39
List Price:  £37.10
Saving Of:  £3.71 (10%)
(£27.83 Exc. VAT)Earn 33 Loyalty Points
+
Sheet number:
Rolled:

Part Number:  5/121

10% off everything until Easter Monday. Offer ends 23:59 22/04/2019. Discount automatically applied. Online orders only


  • Complete set of drawings
  • 6 sheets
  • Individual sheets available

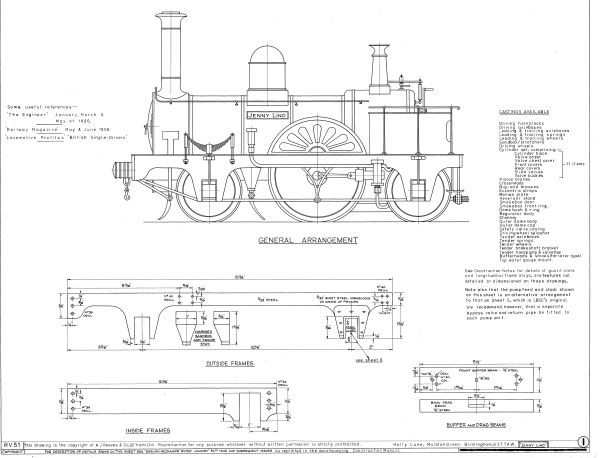

  • Sheet 1 - Loco side elevation, outer frames, inner frames, buffer & drag beams
  • Sheet 2 - Frame assembly plan, driving axleboxes and hornblocks, leading/trailing/tender axleboxes, wheels, crankshaft, axles, springs, cylinder block, valve chest, valve & buckle
  • Sheet 3 - Cylinder erection, connecting rod, crosshead, guide bar, weighshaft bracket, eccentric rods & straps, rockers, Stephenson link motion & parts, loose eccentric motion & parts, reverse lever, feed pumps
  • Sheet 4 - lubricator, boiler, regulator, smokebox front
  • Sheet 5 - Boiler section, superheater, safety valve, chimney, various valve details, brake gear
  • Sheet 6 - Tender side elevation, frames, half plan tender body, tender pump, injector

By LBSC from the original design by E.B. Wilson of 1846.

Please note all castings will require machining. The image shown is for display purposes only and where dimensions are shown they are to provide an indication as to the finished size which can be achieved from the casting supplied
